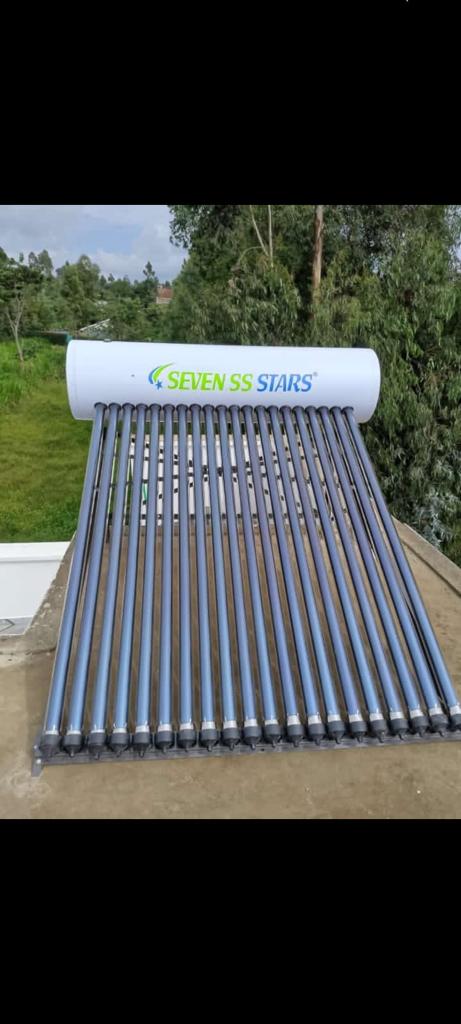

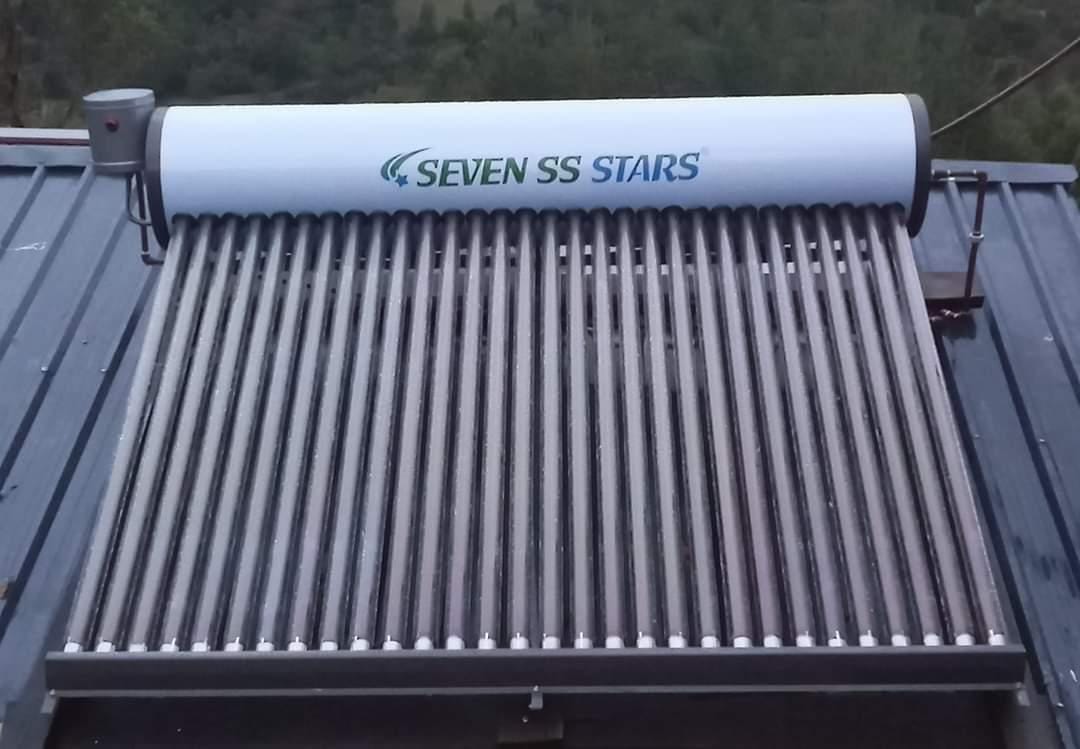

Non-Pressurized Solar Water Heaters
The system is basically made up of the Tank and the Collectors. The Tank is comprised of the inner and outer layers, separated by a highly-effective, heat-insulating material; this ensures that all hot water in the tank stays hot for a long period of time. The Collectors are high-efficiency vacuum tubes, whose inner layer traps heat from the sun via a triple-absorption coating.

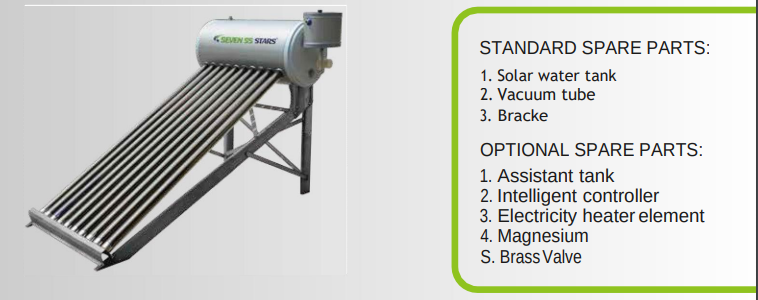

INTEGRATIVE NON PRESSURE VACUUM TUBE SYSTEM
Specifications
1. Solar Collector
Vacuum Tube Type: Three Target Vacuum Tube (Cu-S/S-AU Ni, 58mm*1800mm size)
Tube Material: 1.6mm thickness borosilicate 3.3
Hail Resistance: 25mm
2. Water Tank
Diameter: 455mm
Inner tank material: 0.31mm-0.5mm thickness SUS 304 food-grade stainless steel
Outer tank material: 0.31mm-0.5mm thickness galvanized steel
3. Insulation Layer Material
High-density polyurethane foaming (Germany), 50mm thickness, 42kg/m³
4. Bracket
Material: 1.5mm thickness galvanized steel
Angle: 27°
5. Heat Preservation
72-80 hours
6. Absorption Rate
93%
Heat radiation rate: ≤6% (100°C)
(may vary by country)
| Model | Tube Qty (pcs) | Tube Size | Tank Size | Capacity (L) | Hot water Yield (L) | Supply Ability (person) | Loading Qty (20'GP/HD) |
|---|---|---|---|---|---|---|---|
| SS-NP01-10 | 10 | 58x1800mm | 96.5x45.5x45.5cm | 100 | 80 | 1-2 | 78/200 units |
| SS-NP01-15 | 15 | 58x1800mm | 136x45.5x45.5cm | 150 | 120 | 2-3 | 56/135 units |
| SS-NP01-20 | 20 | 58x1800mm | 174x45.5x45.5cm | 200 | 160 | 4-5 | 43/110 units |
| SS-NP01-24 | 24 | 58x1800mm | 208x45.5x45.5cm | 240 | 192 | 5-6 | 36/94 units |
| SS-NP01-30 | 30 | 58x1800mm | 256x45.5x45.5cm | 300 | 260 | 6-8 | 30/75 units |
| SS-NP01-36 | 36 | 58x1800mm | 304x55.5x55.5cm | 360 | 288 | 8-10 | 25/65 units |
INTEGRATE HEATPIPE PRESSURIZED SYSTEM
ADVANTAGE
Our Heatpipe solar system use inner stainless 316(different than common
market 304 material) which is reaching medical surgical equipment level,reduces the
chromium content,increase the content of nickel,molybdenum,and increase the
corrosion resistance greatly enhance thereby,our system can use in the enviorment
which water not good,or seawater, long lifetime stay.
And heatpipe design solar water heater system which is good for replacement after
some years of using. we clean the copper head, and change new to make sure that the
solar system work as new.
All our system temperature can reach 100”C under the good sun for somedays
without using water. Which others product can only have temperature around
50oC-60oC When you choose our solar water heater system,90% time of year use solar
energy and very few time use electricity while rainy season.but all the products in
market they use electricity power to heat water instead of solar energy. because they fix
theheaterelementinsidesolarbyautomatic settingtobe80°Cdirectly.Andourheater
element use controller panelto switch off.when need heating with electricity power,
you can switch on.And allour controller paneland electricity element we adjust the
power range to be 230+10% which is more situable for Kenya power to avoid the broken
of unsteady voltage.
Model List
| Model | Tube Qty (pcs) | Tube Size | Tank Size | Capacity (L) | Supply Ability (person) | Loading Qty (20'GP/HQ) |
|---|---|---|---|---|---|---|
| SS-P01-15 | 15 | 58x1800mm | 140x47x47cm | 130 | 2-3 | 56/132 units |
| SS-P01-20 | 20 | 58x1800mm | 177x47x47cm | 180 | 3-5 | 43/101 units |
| SS-P01-30 | 30 | 58x1800mm | 252x47x47cm | 250 | 4-6 | 30/71 units |

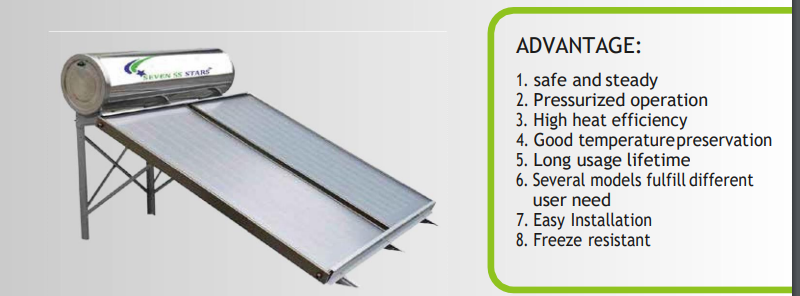

INTEGRATE FLAT PANELPRESSURIZED SYSTEM
Specifications
1. Solar Panel
All copper, blue chrome selective coating.
2. Water Tank
Diameter: 470mm
Inner Tank: 1.2mm SUS316
Outer Tank: 0.€1 mm thickness galvanized steel/SUS304 stainless
3. Insulation Layer Material
High density polyurethane foaming (Germany), 50mm thickness, 32kg/m³.
4. Max Working Pressure
0.6 Mpa
5. Bracket
Material: 1.5mm thickness galvanized/stainless available
6. Daily Efficiency
>55% (>52% in winter)
7. Heatpipe Preservation
72-80 hours
Model List
| Model | Tube Qty (pcs) | Tube Size | Tank Size | Capacity (L) | Supply Ability (person) | Loading Qty (20'GP/HQ) |
|---|---|---|---|---|---|---|
| SS-P01-15 | 1 | 1.0x2.0x0.8mm | 130x47xñ7cm | 130 | 2-3 | 56/132 units |
| SS-P01-20 | 2 | 1.25x2.0x0.8mm | 177x47xñ7cm | 180 | 3-5 | ñ3/101 units |
| SS-P01-30 | 2 | 1.0x2.0x0.8mm | 252x£7xñ7cm | 250 | 30/71 units |

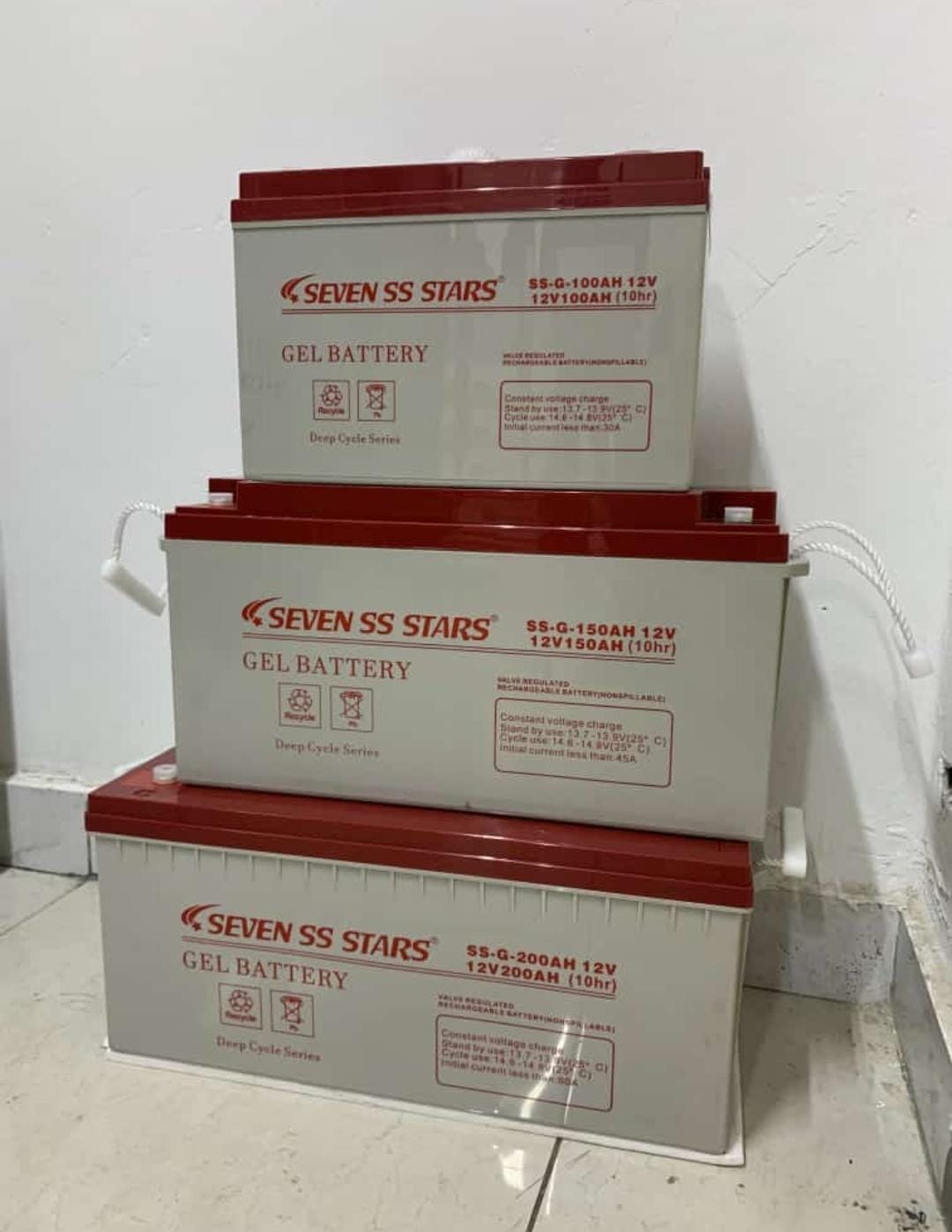

Gel Batteries
Gel batteries are high quality and reliable lead acid batteries with an extended lifetime.
Solar gel batteries contain silica in the electrolyte, which creates a gel-like substance.
The gel electrolyte prevents the solar gel batteries from emitting as many fumes as the traditional battery.
A gel battery is also easy to install in various positions because of its stability and can be used for commercial and residential purposes .
All solar gel batteries are deep-cycle batteries. Available in 100Ah 12V, 150Ah 12V and 200Ah
Lithium Batteries
Lithium Batteries Lithium-ion batteries are the latest in rechargeable storage technology for solar, electric, and other forms of energy.
These are batteries that are Based on lithium ion ferric phosphate technology, they have an energy density three times higher than lead acid batteries, for the same dimension.
Shop from Seven Stars High Efficiency Lithium Batteries .
They are available in 12V 2.56KWH, 24V 3.75KWH 48V 5KWH 48V 7.5KWH 48V 10KWH. With a 5 year warranty.

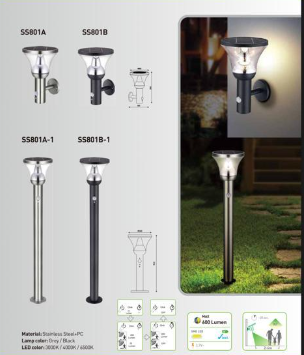

Garden Lights
Our new generation of garden lights gives your outdoor garden the solar night glow.
They are 6watts automatic solar garden lights. Enjoy zero KPLC bills.
They do not require any wiring and give you 12hrs lighting.

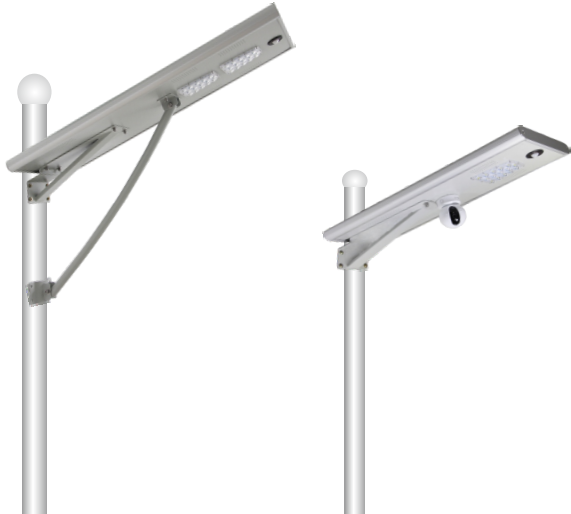

Street Lights:SSBJ2
TECHNICAL PARAMETERS
| Nominal Wattage (W) | Solar Panel | Battery (Lithium Iron Phosphate) | Charge time/Light time |
|---|---|---|---|
| 50W | 15W/6V | 3/18AH*3.2V=57.6WH | 5H/20H |
| 80W | 20W/6V | 4/24AH*3.2V=76.8WH | 5H/20H |
| 100W | 25W/6V | 5/30AH*3.2V=96WH | 5H/20H |
| 120W | 30W/9V | 6/18AH*6.4V=115.2WH | 5H/20H |
| 150W | 35W/9V | 8/24AH*6.4V=153.6WH | 5H/20H |

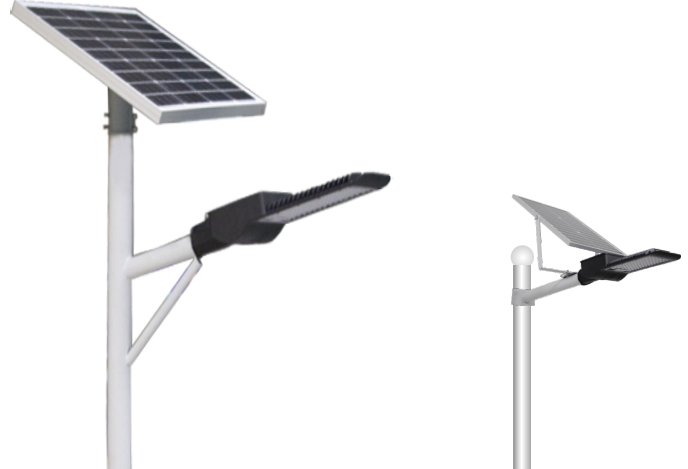

Street Lights:SSBB1
TECHNICAL PARAMETERS
| Nominal Wattage (W) | Solar Panel | Battery (Lithium Iron Phosphate) | Charge Time/Light Time |
|---|---|---|---|
| 50W | 15W/6V | 15W/6V | 3/18AH*3.2V=57.6WH (Charge Time) |
| 80W | 20W/6V | 25W/6V | 4/24AH*3.2V=76.8WH (Charge Time) |
| 100W | 25W/6V | 30W/6V | 5/30AH*3.2V=96WH (Charge Time) |
| 120W | 30W/9V | 45W/18V | 6/18AH*6.4V=115.2WH (Charge Time) |
| 150W | 35W/9V | 50W/18V | 8/24AH*6.4V=153.6WH (Charge Time) |
